Shipping Container Component Codes

What is EDIS for the Container Industry

EDIS stands for Equipment Damage and Inspection System.
It is a standardized set of codes developed by the Institute of International Container Lessors (IICL) to record and report container damages in a clear and consistent way. These codes are mainly used in damage surveys, repair estimates, and container interchange between shipping lines, depots, and leasing companies.

What is CEDEX for the Container Industry

CEDEX stands for Container Equipment Data Exchange.
It is a set of standardized codes and definitions developed by the United Nations Economic Commission for Europe (UNECE). CEDEX provides a global language for container equipment data, ensuring compatibility across different software systems, depots, and shipping lines.

Difference Between EDIS and CEDEX

Aspect	EDIS	CEDEX
Full Form	Equipment Damage and Inspection System	Container Equipment Data Exchange
Developed by	IICL (Institute of International Container Lessors)	UNECE (United Nations Economic Commission for Europe)
Main Use	Standard damage codes for inspection and repair	Standard data exchange for container information
Focus Area	Damage reporting and surveys	Global communication and data compatibility
Application	Mainly used in depots, surveys, and repair shops	Used in EDI systems, shipping lines, and depots worldwide

IICL PREFERRED CODES

In the container industry, the ISO Cedex coding system contains a wide range of entries, some of which are overlapping, conflicting, or unnecessarily repeated. This can create confusion and reduce the effectiveness of code usage across different operators and stakeholders. To overcome these challenges, the use of “IICL Preferred” codes is encouraged. These standardized codes provide a clearer, more consistent framework that allows all parties whether shipping lines, depots, surveyors, or leasing companies to work with the same references. In doing so, the industry can maximize the advantages of accuracy, efficiency, and uniformity, ultimately reducing errors and improving communication within global container operations.

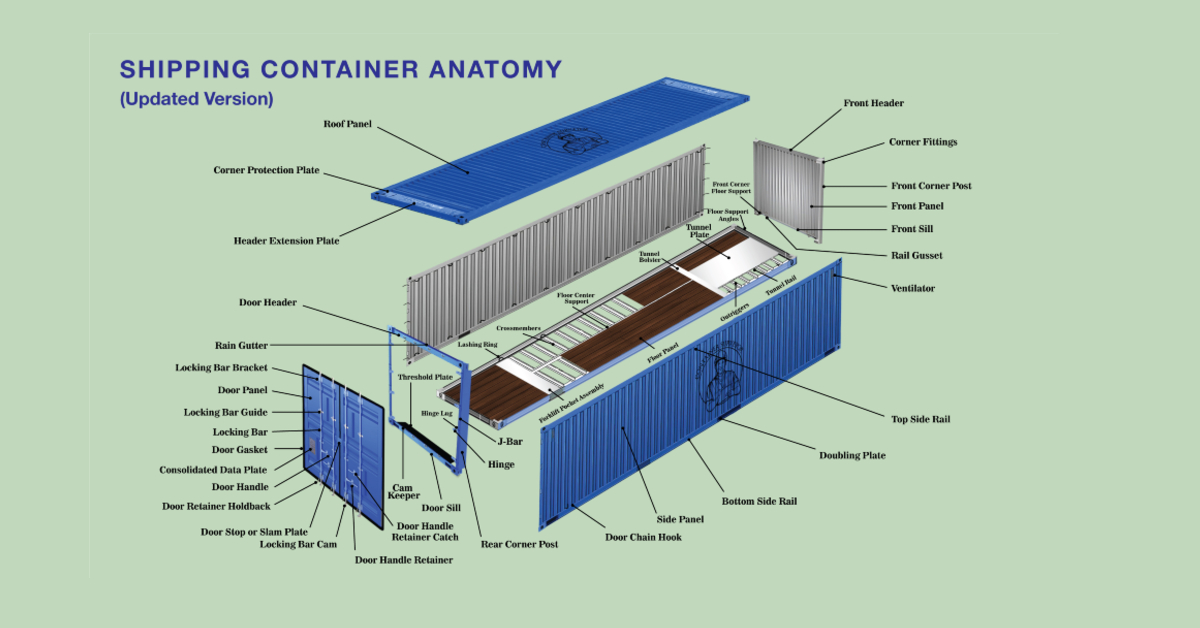

Container Component Codes for for Rear Assembly

Component	Code	Description
CAM Keeper	RCK	A small locking part that helps secure the container door in place.
Cone (damage) Protector Recess	RCI	A recessed area designed to protect the container’s cone from damage.
Corner Fitting	CFG	Metal casting at the corners used for lifting, stacking, and securing containers.
Corner Post – “J” bar	CPJ	A vertical support post shaped like a “J” for strength and alignment.
Corner Post – inner	CPI	Inner vertical post that supports and aligns the rear door frame.
Corner Post – outer	CPO	Outer vertical post providing structural support to the rear frame.
Corner Post (only)	CPS	Standard vertical corner post without extra fittings.
Corner Post Assembly	CPA	Complete corner post with all fittings combined.
Door Complete – with hardware	DAH	Rear door with all locking bars, hinges, and fittings included.
Door Complete – without hardware	DAA	Rear door frame and panels only, without fittings.
Hinge Lug – Corner Post	CPL	Small bracket on the post where the hinge pin is inserted.
Hinge Pin	HGP	Metal pin that connects the door hinge to allow rotation.
Rails – Top and Bottom	RLA	Horizontal beams at the top and bottom edges for strength.

Container Component Codes for Door Assembly

Component	Code	Description
Consolidated Data Plate	MPD	Metal plate showing container details (owner, type, approval info).
Gasket	GTO	Rubber seal around the door to keep water and dust out.
Gasket Assembly (with strip)	GTA	Complete sealing strip fitted along the doors.
Gasket Retainer	GRS	Metal strip that holds the gasket in place.
Handle Catch	DHC	Part that holds the door handle securely when closed.
Handle Retainer	DHR	Keeps the door handle locked in place.
Hardware Fasteners	HWR	Screws, bolts, and small fixings for door assembly.
Hinge Assembly	HGH	Complete hinge system for opening and closing doors.
Holdback Cord	DRT	Cord or chain used to keep doors open when required.
Locking Bar Assembly	LBA	Full system of locking rods and handles for securing the door.
Panel	PAA	Main flat sheet that makes up the door surface.
Security (TIR) Plate or Lug	DPL	Safety fitting for customs seals and security locks.
Stiffener – Bottom edge	DSB	Extra reinforcement bar at the door’s lower edge.
Stiffener – Center (line) edge	DSC	Reinforcement bar along the middle of the door.
Stiffener – Hinge side edge	DSH	Strengthening bar near the door hinge side.
Stiffener – Top edge	DST	Extra bar that strengthens the top of the door.

Container Component Codes for Locking Bar Assembly

Component	Code	Description
Locking Bar Bracket	LBB	Support piece that holds the locking bar in place.
Bushing	—	Small round sleeve that reduces friction in moving parts.
Locking Bar CAM	LBC	Rotating part that engages and secures the locking bar.
Locking Bar Guide	LBG	Keeps the locking bar aligned during operation.
Handle	LBH	Hand lever used to operate the locking bar.
Handle Lug	LBL	Connector that attaches the handle to the locking bar.
Locking Bar Tube/Rod	LBR	Vertical steel rod that locks the container door.
Locking Handle Assembly	DHL	Complete handle unit for operating the locking bar.

Container Component Codes for Side Panel Assembly

Component	Code	Description
Bottom Rail – Doubler Plate	RUP	Extra plate for reinforcing the bottom rail.
Bottom Rail – Lower Flange	RLF	Lower horizontal part of the side bottom rail.
Bottom Rail – Upper Flange	RUF	Upper horizontal part of the side bottom rail.
Door Holdback Retainer	DRT	Holder that secures doors to the side wall when open.
Panels	PAA	Flat steel sheets making up the side wall.
Rail Reinforce Gusset – Top and Bottom	RLG	Small triangular plates reinforcing rail joints.
Rails – Top and Bottom	RLA	Long horizontal members at top and bottom of side walls.
Ventilator Assembly	VRA	Small vent fitted on the side for air circulation.

Container Component Codes for Front Assembly

Component	Code	Description
Cone (damage) Protector Recess	RCI	Protective recess at the front cone area.
Corner Post (only)	CPS	Vertical post at the container’s front corners.
Corner Post Assembly	CPA	Complete corner post unit with fittings.
Corner Fitting	CFG	Casting at the corners for lifting/stacking.
Panel	PAA	Flat sheet forming the front wall.
Rail Reinforce Gusset – Top and Bottom	RLG	Gusset plates reinforcing rail ends.
Rails – Top and Bottom	RLA	Horizontal members at top and bottom front.

Container Component Codes for Roof Assembly

Component	Code	Description
Header (extension) Plate – Front, Rear	HEP	Plate joining roof to front/rear structure.
Header Reinforce Gusset	RLG	Extra plate that strengthens roof header.
Panel	PAA	Main roof panel sheet.
Roof Steel Corrugated – complete	PSC	Full corrugated steel roof sheet.
Roof Steel Flat (complete) including bows	RAA	Full flat steel roof with bow supports.

Container Component Codes for Floor Assembly

Component	Code	Description
Floor – Plywood	FPP	Wooden flooring panel made from plywood.
Floor – Plank	FPB	Wooden plank flooring.
Floor – Laminated	FLP	Multi-layer laminated wooden floor.
Floor – Steel	FSP	Full steel flooring sheet.
Threshold Plate	FTP	Metal plate at the door entrance to protect flooring.
Hat Section/Floor Center Rail	FHS	Middle support rail under the floor.
Screws, Fasteners	HWR	Fixing parts like screws and bolts for flooring.

Container Component Codes for Interior

Component	Code	Description
Lashing Bar – Corner Posts	LSB	Bars fixed to posts for securing cargo.
Lashing Rings – Top and Bottom Rails	LSR	Rings for attaching cargo securing ropes/chains.

Container Component Codes for Under Frame

Component	Code	Description
Crossmember	CMU	Horizontal beam supporting the floor.
Floor Support Angle	FSA	Angled steel section giving extra floor support.
Fork Lift Pocket Assembly	FLA	Built-in pocket for forklift lifting.
Outrigger	CMO	Side extension that supports the frame.
Tunnel Assembly	TUA	Structural tunnel in the center for strength.

Container Component Codes for Crossmember Assembly

Component	Code	Description
Upper Flange	CMU	Top section of the crossmember.
Lower Flange	CML	Bottom section of the crossmember.

Container Component Codes for Fork Lift Pocket Assembly

Component	Code	Description
Lower Flange	FLL	Lower support plate of the pocket.
Side	FLT	Side wall of the pocket.
Strap	FLS	Reinforcing strap around the pocket.
Top Plate	FLP	Top cover plate of the pocket.
Upper Flange	FLU	Upper support plate of the pocket.

Container Component Codes for Tunnel Assembly

Component	Code	Description
Bolster	TUB	Strong cross beam inside the tunnel.
Plate	TUP	Flat steel plate forming tunnel walls.
Rail	RTL	Rail element inside the tunnel assembly.
